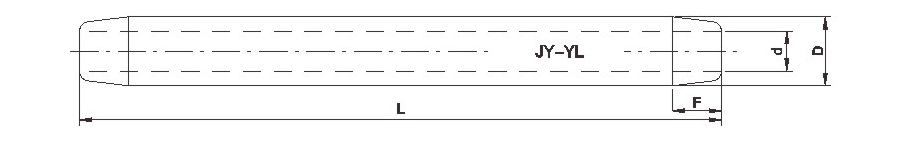

JY / LY series splicing tube are suitable for the continuous use of 1kV and 10kV overhead insulated wires in overhead lines. The splicing tube are used in conjunction with our company's special insulation cover to provide insulation protection.

Usage: succesion of 1KV or 10KV overhead insulated lead

Material: aluminium alloy

Suitable conductor :1KV and 10KV JKLYJ

Model	1kV Heat Shrinkable Tube		10kV hEAT sHRINKABLE tUBE		10kV Stress Tube		Hot Melt Adhesive
	Type	Length	Type	Length	Type	Length
JY-35YL	HG26/10	230	WRSG26/10	210	YSG26/10	170	20g/roll
JY-50YL	HG26/10	250	WRSG26/10	230	YRSG26/10	190
JY-70YL	HG26/10	28O	WRSG26/10	260	YRSG26/10	220
JY-95YL	HG34/14	310	WRSG34/14	290	YRSG34/14	250
JY-120YL	HG34/14	330	WRSG34/14	310	YRSG34/14	270
JY-150YL	HG34/14	360	WRSG34/14	340	YRSG34/14	300
JY-185YL	HG40/18	410	WRSG42/18	390	YRSG42/18	350	30g/roll
JY-240YL	HG40/18	450	WRSG42/18	430	YRSG42/18	390
JY-300YL	HG42/18	490	W尺SG42/18	470	YSG42/18	430

1. JY-YL splice sleeve for insulated conductor is used in the jointing of aerial insulation cable on the aerial electric power line.

2. When the low-voltage is 1KV; the whole set includes aluminum pipe, 1KV heat-shrink tube and hot melt adhesive;

3. When the high-voltage is 10KV; the whole set includes aluminum pipe, 10KV heat-shrink tube, 10KV stress control tube and hot melt adhesive
