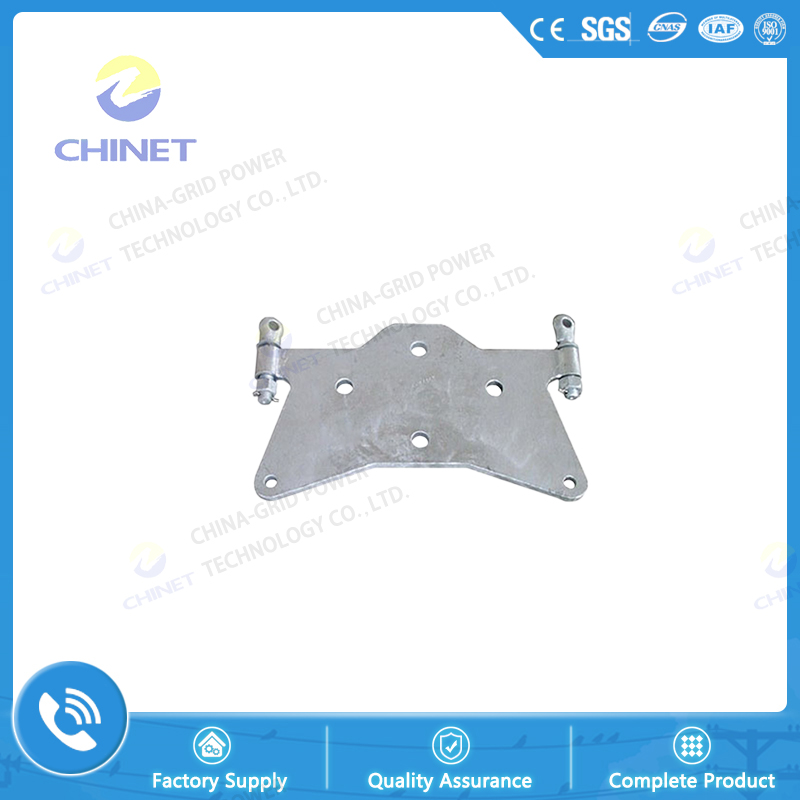

LK type yoke plate, just like a pentagon, is one kind of yoke plate of four-split conductor subjected to single-connection suspension insulator string. It is usually applicable for 500KV high-voltage transmission line, and it can effectively support & keep the distance among the four pieces of split conductors. Meanwhile its four supporting points are of strong tenacity, preventing the conductors from dropping as well as ensuring that overhead wire can steadily & chronically work.

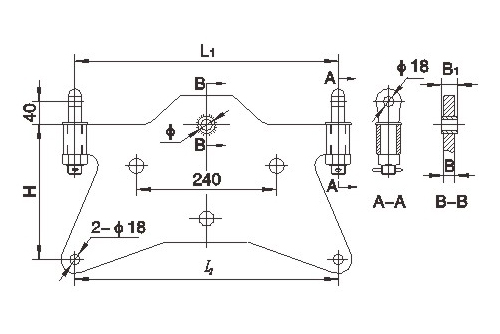

Type		Dimension (mm)						Nominal Failure Load (kN)	Weight (kg)
		B	B1	Φ1	H	L1	L2
	LK-1045	16	/	20	230	450	450	100	16.0
	LK-1645	18	/	26	230	450	450	160	17.0
	LK-164745	18	/	26	225	470	450	160	15.4
	LK-1645G	18	20	26	245	550	500	160	18.9
	LK-1650S	18	/	26	265	500	450	160	20.4
	LK-214945	18	26	30	230	490	450	210	18.3
