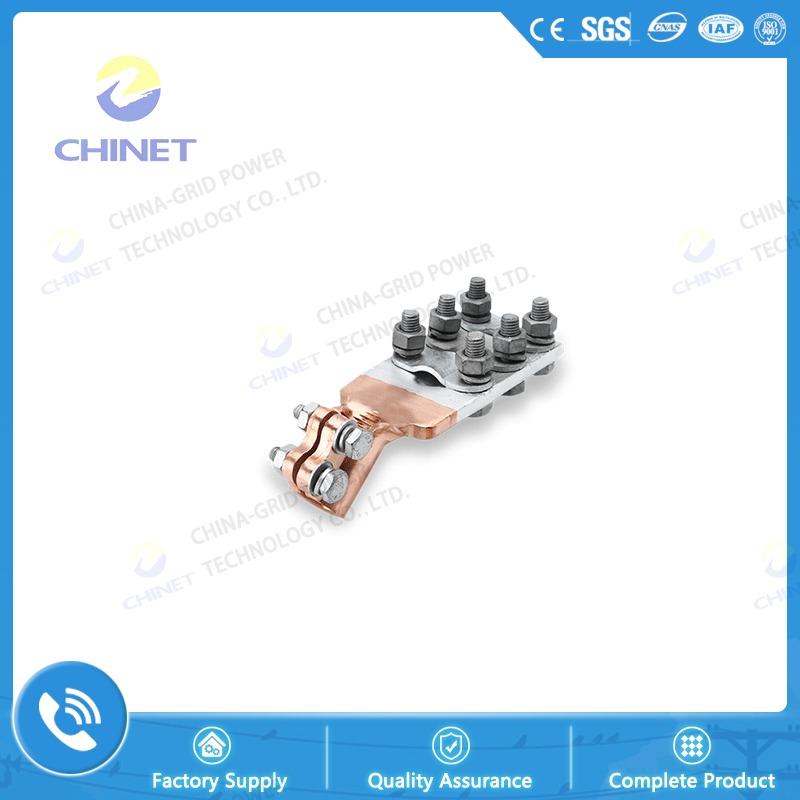

SBG Copper Aluminum Holding Pole Clamp

Classification:Device Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

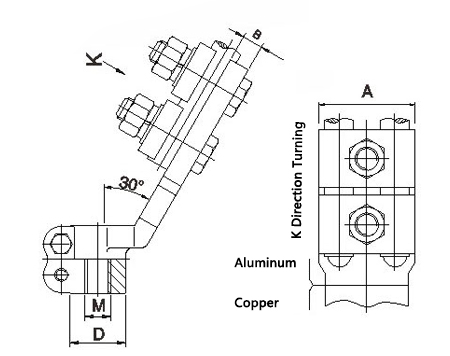

SBG Platen Copper Aluminum Holding Pole Clamps:
Type Application of Wire Cutting (mm2) Main Dimensions (mm)
M D B A
SBG-M12B 35 ~ 120 12 22 7 50
SBG-M14B 50 ~ 150 14 26 7 50
SBG-M16B 50 ~ 150 16 26 7 50
SBG-M18B 95 ~ 240 18 30 8 60
SBG-M20B 95 ~ 240 20 30 8 60
SBG-M22B 150 ~ 400 22 36 9 70
SBG-M24B 150 ~ 400 24 36 9 70

Suitable for round bar terminal posts, connection with aluminum wires

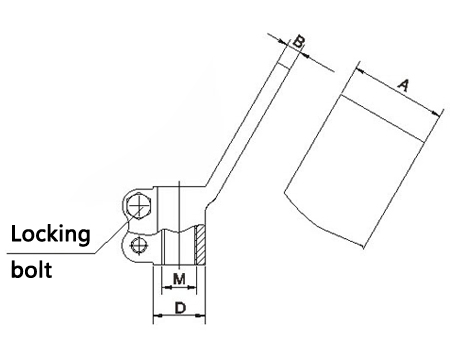

SBG-P Flat Copper Aluminum Holding Pole Clamps
Type Main Dimensions (mm)
M D B A
SBG-P-M12B 12 22 7 50
SBG-P-M14B 14 26 7 50
SBG-P-M16B 16 26 7 50
SBG-P-M18B 18 30 8 60
SBG-P-M20B 20 30 8 60

Suitable for connecting round bar connection pile head with aluminum bus bar

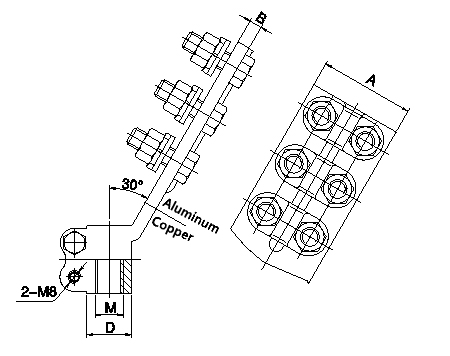

SBG-S Copper Aluminum Double Conductor Holding Pole Clamps
Type Application of Wire Cutting (mm2) Main Dimensions (mm)
M D B A
SBG-S-M12B 120 ~ 150 12 22 14 63
SBG-S-M14B 120 ~ 150 14 26 14 63
SBG-S-M16B 120 ~ 150 16 26 14 63
SBG-S-M18B 120 ~ 185 18 30 14 63
SBG-S-M20B 120 ~ 185 20 30 14 63

Suitable for connecting round rod connection pile head with double aluminum conductors
