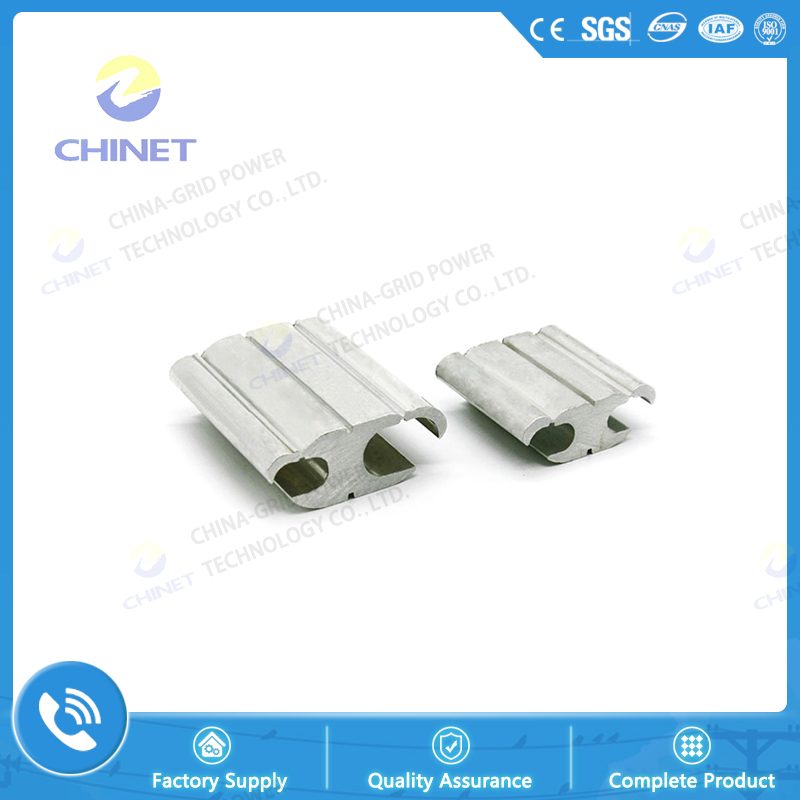

H-type clamp is a non-load-bearing type fitting. The product uses a material similar to aluminum wire. At different ambient temperatures, the clamp and the wire are synchronized with the thermal expansion and contraction of the wire, and the electrical performance is extremely stable.

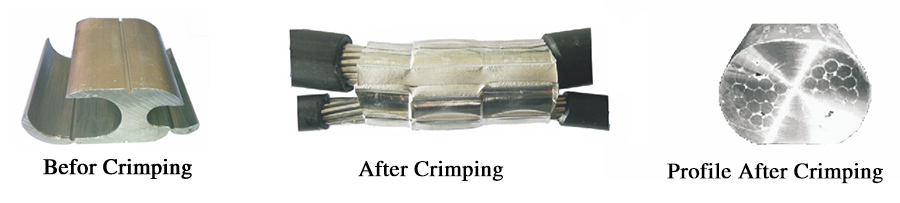

After crimping, the clamp and the conductor are integrated into one body, and the conductor is completely and completely covered. There is no void at the contact point between the conductor and the trunk. The resistance is low and the temperature rise is low. The conductive groove is coated with conductive paste in the trunk of the clamp. Removing the aluminum chloride film of the wire can increase the contact area. Adopting the design scheme of increasing the anode, the aluminum connection of the pot can avoid the influence of electric corrosion.

1. Increase the anode and reduce the electric contact;

2. Even current distribution and small resistance;

3. low temperature rise, reduce failures;

4. using professional hydraulic pliers, balanced pressure, stable quality.

1. High, middle and low voltage can be connected: It can meet the connection of various high, middle and low voltage non-tension lines.

2. Free connection of various wire diameters: It can satisfy (16-240mm2) various combinations of different wire diameters for connection at will.

3. Random connection of various materials: It can meet all kinds of materials (aluminum wire, copper core, aluminum core insulated wire, steel core aluminum stranded wire, copper stranded wire, etc.)

Type	A main line		B extension		Crimp
	Wire cutting	Clip line range	Wire cutting	Clip line range	Length L	Die	The number of
H-11	16 ~ 35	4.8 ~ 8.2	16 ~ 35	4.8 ~ 8.2	44	O	2
H-21	50 ~ 95	8.3 ~ 14.6	16 ~ 50	4.8 ~ 9.6	63	D	3
H-22	50 ~ 95	10.0 ~ 14.6	50 ~ 95	10.0 ~ 14.6	63	D	3
H-31	95 ~ 240	13.0 ~ 22.4	16 ~ 70	4.8 ~ 11.4	63	N	3
H-32	95 ~ 240	13.0 ~ 22.4	70 ~ 120	11.6 ~ 16.0	63	N	3
H-41	150 ~ 240	16.2 ~ 22.4	150 ~ 240	16.2 ~ 22.4	89	N	4

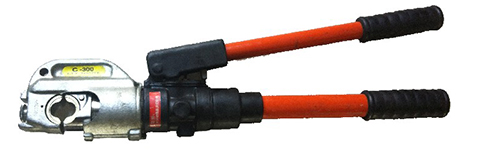

1.Hydraulic tongs with a pressure of 12T, equipped with three sets of "O, D, N" die

2. When crimping, the hydraulic pliers must be fully output to automatic pressure release, and one mold is completed.
