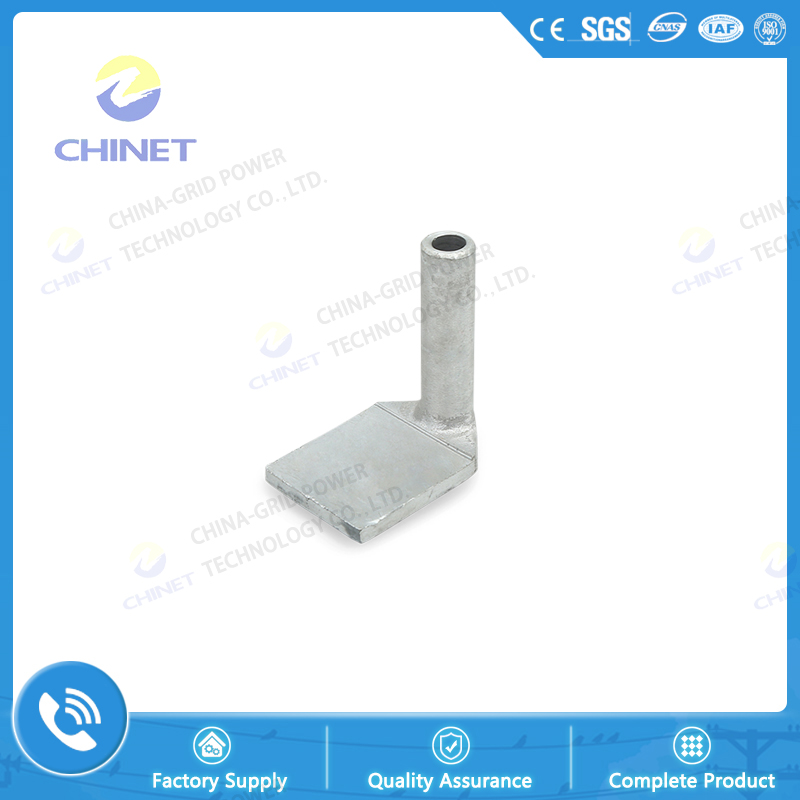

SY、SYG Compression Aluminum 、 Copper Aluminum (brazing) Clamp (90°)

Classification:Device Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:
Type Applicable Conductor Model Main Dimensions (mm)

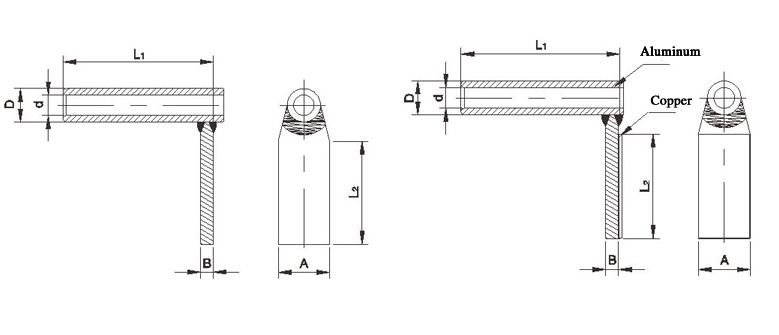

d D L1 L2 A B
SY-95/15 ~ 20D LGJ-95/15 ~ 20 16.0 26 115 80 40 10
SY-120/7D LGJ-120/7 16.0 26 115 80 50 10
SY-120/20 ~ 25D LGJ-120/20 ~ 25 17.2 26 115 80 50 10
SY-150/8 ~ 20D LGJ-150/8 ~ 20 18.2 30 125 80 50 10
SY-150/25 ~ 35D LGJ-150/25 ~ 35 19.0 30 125 80 50 10
SY-185/10 ~ 30D LGJ-185/10 ~ 30 20.5 32 125 80 50 12
SY-185/45D LGJ-185/45 21.5 32 125 80 50 12
SY-240/30 ~ 40D LGJ-240/30 ~ 40 23.0 36 135 80 50 12
SY-240/55D LGJ-240/55 24.0 36 135 80 50 12
SY-300/15 ~ 20D LGJ-300/15 ~ 20 25.0 40 145 100 63 16
SY-300/25 ~ 40D LGJ-300/25 ~ 40 25.5 40 145 100 63 16
SY-300/50D LGJ-300/50 26.0 40 145 100 63 16
SY-300/70D LGJ-300/70 27.0 42 145 100 63 16
SY-400/20 ~ 25D LGJ-400/20 ~ 25 28.5 45 155 100 63 16
SY-400/50D LGJ-400/50 29.5 45 155 100 63 16
SY-400/65D LGJ-400/65 29.5 48 155 100 63 16
SY-400/95D LGJ-400/95 31.0 48 155 100 63 16
SY-500/35 ~ 45D LGJ-500/35 ~ 45 31.5 52 165 90 80 16
SY-500/65D LGJ-500/65 32.5 52 165 90 80 16
SY-630/45D LGJ-630/45 35.5 60 185 100 100 20
SY-630/55 ~ 80D LGJ-630/55 ~ 80 36.5 60 185 100 100 20
SY-800/55 ~ 100D LGJ-800/55 ~ 100 40.5 65 210 125 125 22
Description:

1. The additional letter A or the default indicates level (0 °), B indicates 30 °, and Q indicates brazing type;

2. Brazing of copper and aluminum by brazing process;

3. If the size of the terminal board required by the user is different from the table, please indicate otherwise when ordering.
