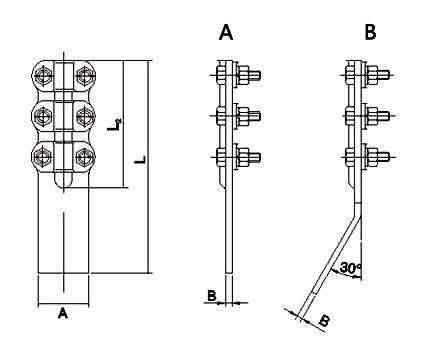

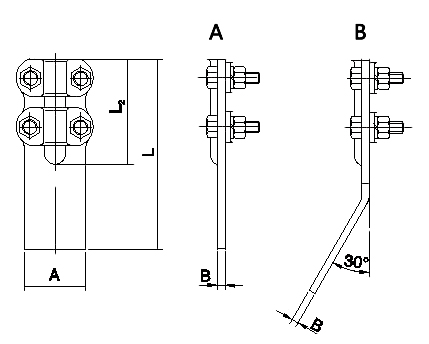

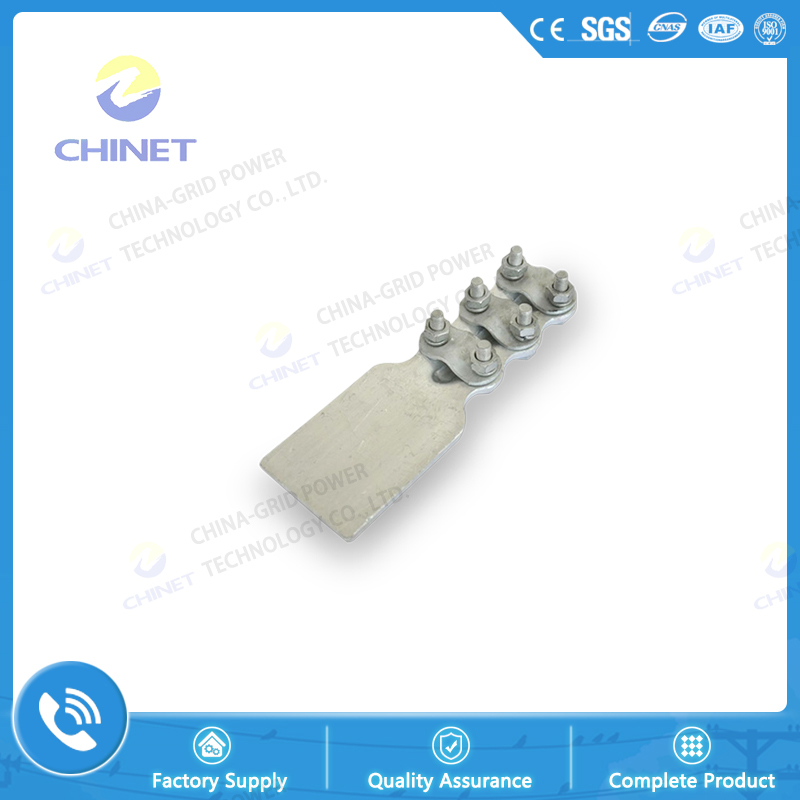

Type	74 Setting	Application of Wire Cutting (mm2)	Main Dimensions (mm)				Remark
				B	A	L2	L
	/	SL-1	35 ~ 50	6	40	65	120	1
		SL-2	70 ~ 95	6	40	80	136
	SL-1A(B)	SL-3	35 ~ 50	6	40	65	145	2
	SL-2A(B)	SL-4	70 ~ 95	6	40	80	175
	SL-2A(B)-63	/		8	63	80	185
	SL-2A(B)-80			8	80	80	185	3
	SL-2A(B)-100			10	100	80	205
	SL-3A(B)	SL-5	120 ~ 150	8	50	125	225	2
	SL-3A(B)-63	/		8	63	125	239
	SL-3A(B)-80	SL-7		8	80	125	239	3
	SL-3A(B)-100	/		10	100	125	260
	SL-4A(B)	SL-6	185 ~ 240	8	50	125	225	2
	SL-4A(B)-63	/		8	63	125	239
	SL-4A(B)-80	SL-8		8	80	125	239	3
	SL-4A(B)-100	/		10	100	125	260
	SL-5A(B)	/	300 ~ 400	10	63	130	245	2
	SL-5A(B)-80			10	100	130	245	3
	SL-5A(B)-100			10	100	130	260

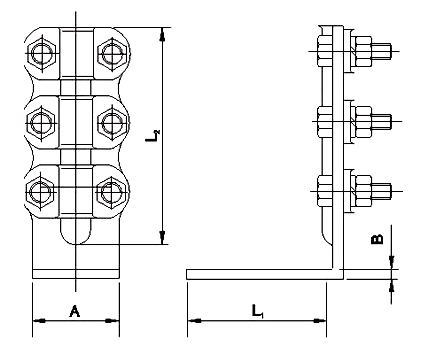

	Type	Applicable wire cross section(mm2)	Number of bolts	Main Dimension(mm)				Remark
				A	B	L1	L2
	SL-1D	35~50	4	6	40	65	65	2
	SL-2D	70~95	4	6	40	80	80
	SL-3D	120~150	6	8	50	85	125
	SL-4D	185~240	6	8	50	85	125

1. The additional letter A means 0 °; B means 30 °; D means 90 °;

2. It is recommended to make a single hole in remark 1 of the terminal board, double holes in remark 2 and four holes in remark 3

3. The body of the clamp is made of aluminum, and the SL-5 and SL-6 glands are made of aluminum. The rest of the glands and fasteners are made of hot-dip galvanized steel.
