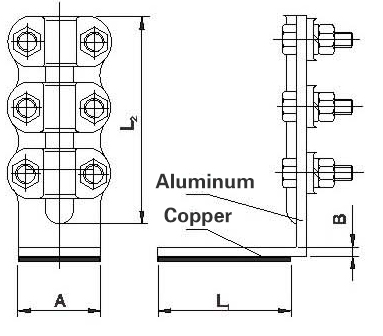

Type | Application Wire Cutting (mm2) | Main Dimensions (mm) | |||
| B | A | L2 | L1 | |||
| SLG-1Q(D) | 35 ~ 50 | 6 | 40 | 65 | 65 | |
| SLG-2Q(D) | 70 ~ 95 | 6 | 40 | 80 | 80 | |
| SLG-3Q(D) | 120 ~ 150 | 8 | 50 | 125 | 85 | |
| SLG-4Q(D) | 185 ~ 240 | 8 | 50 | 125 | 85 | |
1. Additional letter D means 90°
2. Copper-aluminum transition using brazing process
3. If the size of the terminal plate required by the user is different from the table, please specify when ordering.
