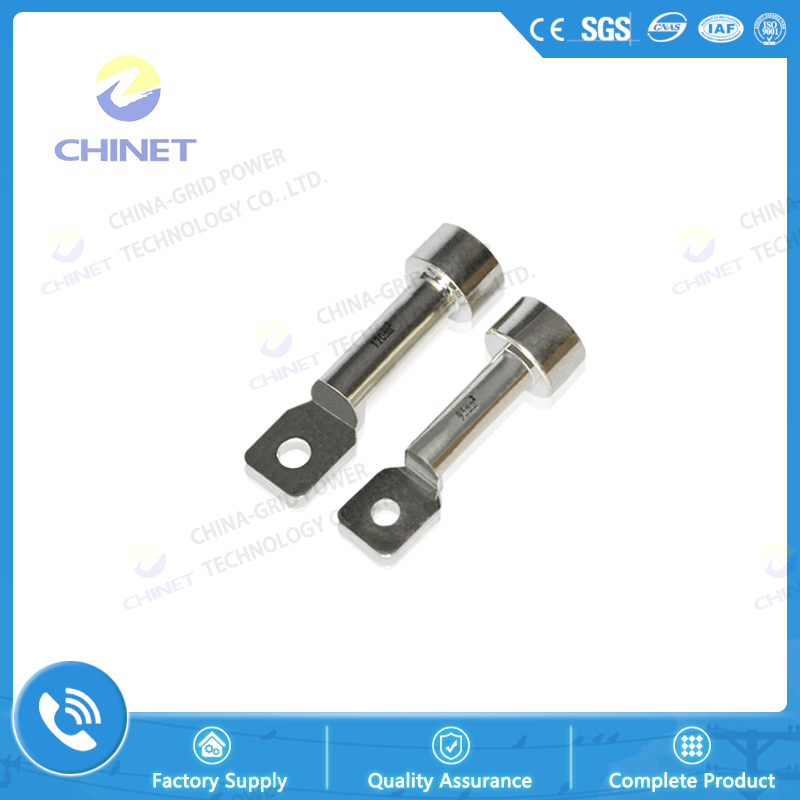

DT-F waterproof Copper connecting terminal

Classification:Cable Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Specifications:

Type

Main Dimensions (mm)

D

d

d1

L1

L

A

Φ

DT-F-25

37

31

7.0

55

110

26

11

DT-F-35

37

31

8.3

55

110

26

11

DT-F-50

37

31

9.3

55

112

30

11

DT-F-70

37

31

11.5

55

114

30

11

DT-F-95

37

31

13.5

55

114

30

11

DT-F-120

37

31

15.0

60

126

32

13

DT-F-150

37

31

16.5

60

126

32

13

DT-F-185

41

35

18.5

60

134

36

13

DT-F-240

41

35

20.5

60

136

40

13

DT-F-300

41

35

23.0

60

141

40

17

DT-F-400

41

35

26.0

90

179

44

17

DT-F-500

41

35

29.2

90

184

44

17

DT-F-630

46

40

33.0

90

190

50

17



Note:

Mainly used for terminal connection of cold shrink and heat shrink cable accessories
