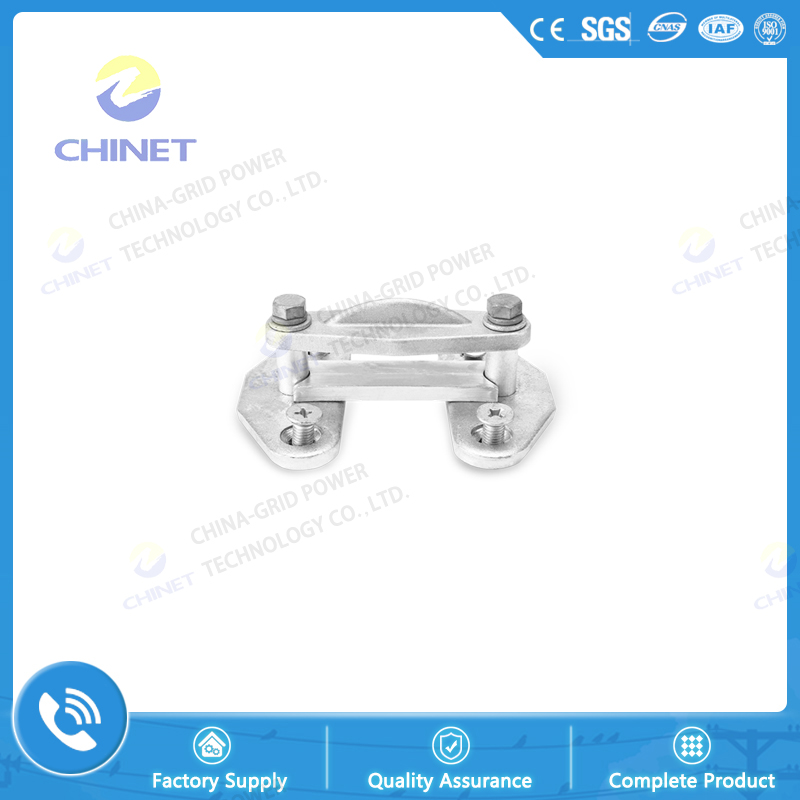

Distribution Substation Fittings

Classification：Station Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

Overview

Specifications:

Type	Application Bus		Main Dimensions (mm)			Legend	Fit Size
Type	Width (mm)	Number(mm)	H	L1	L2	Legend	Fit Size
MWP-101	63	1	6	113	83	IMG 1	The matching composite post insulator has FZSW4-12/8 FZSW4-24/8 FZSW4-40.5/8
MWP-102	80		12	130	100	IMG 1
MWP-103	100			150	120	IMG 2
MWP-104	125			175	145	IMG 2
MWP-201	63	2	32	113	83	IMG 1
MWP-202	80			130	100	IMG 1
MWP-203	100			150	120	IMG 2
MWP-204	125			175	145	IMG 2
MWP-301	63	3	52	113	83	IMG 1
MWP-302	80			130	100	IMG 1
MWP-303	100			150	120	IMG 2
MWP-304	125			175	145	IMG 2
MWP-401	63	4	72	113	83	IMG 1
MWP-402	80			130	100	IMG 1
MWP-403	100			150	120	IMG 2
MWP-404	125			175	145	IMG 2
MWP-105	63	1	6	113	83	IMG 3	The matching composite post insulator has FZSW4-12/4-2 x M8 FZSW2-35/6-2 x M8
MWP-106	80		12	130	100
MWP-107	100			150	120
MWP-108	125			175	145
MWP-205	63	2	32	113	83
MWP-206	80			130	100
MWP-207	100			150	120
MWP-208	125			175	145
MWP-305	63	3	52	113	83
MWP-306	80			130	100
MWP-307	100			150	120
MWP-308	125			175	145

Notes:

The upper cover and partition are aluminum alloy parts, and the rest are hot-dip galvanized steel parts.

When the user needs the supporting post insulator hole distance is different from the above, please specify when ordering.

When selecting the type, when applying the bus-bar, please add J before the model.
