Classification：Insulator Fitting
Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province
0591-22806687 0591-22806697
0591-22806667
| Type |
Rated voltage (kV) |
Rated mechanical tension load (KN) |
Structural height （mm） |
Min arc distance （mm） |
L1 (mm) |
L2 (mm) |
R | φ |
Min nominal creepage distance （mm） |
Lightning full wave impulse withstand voltage ≥ (kV) |
Frequency withstand voltage (kV) |
Figure No. | |

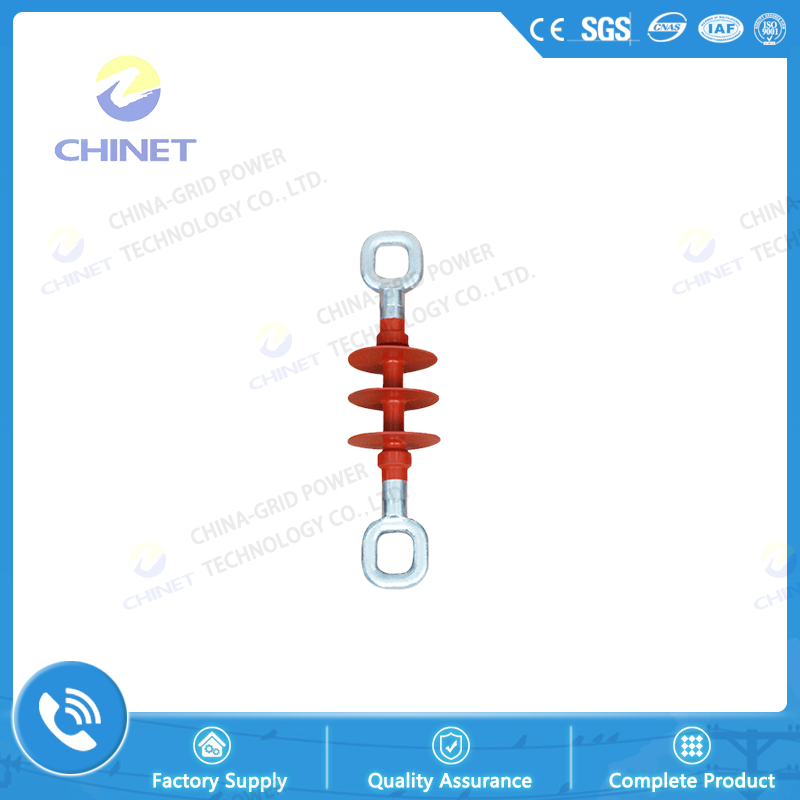

| FJ-10/70-EE | 10 | 70 | 325 | 136 | 20 | 18 | R9 | φ16 | 330 | 85 | 50 | 1 | |
| FJ-10/100-EE | 10 | 100 | 400 | 136 | 40 | 24 | R12 | φ18 | 330 | 85 | 50 | 1 | |
| JH10-90 | 10 | 90 | 200 | 81 | - | - | - | - | 190 | 75 | 42 | 2 | |
| JH10-120 | 10 | 120 | 200 | 81 | - | - | - | - | 190 | 75 | 42 | 2 | |
|
|||||||||||||
