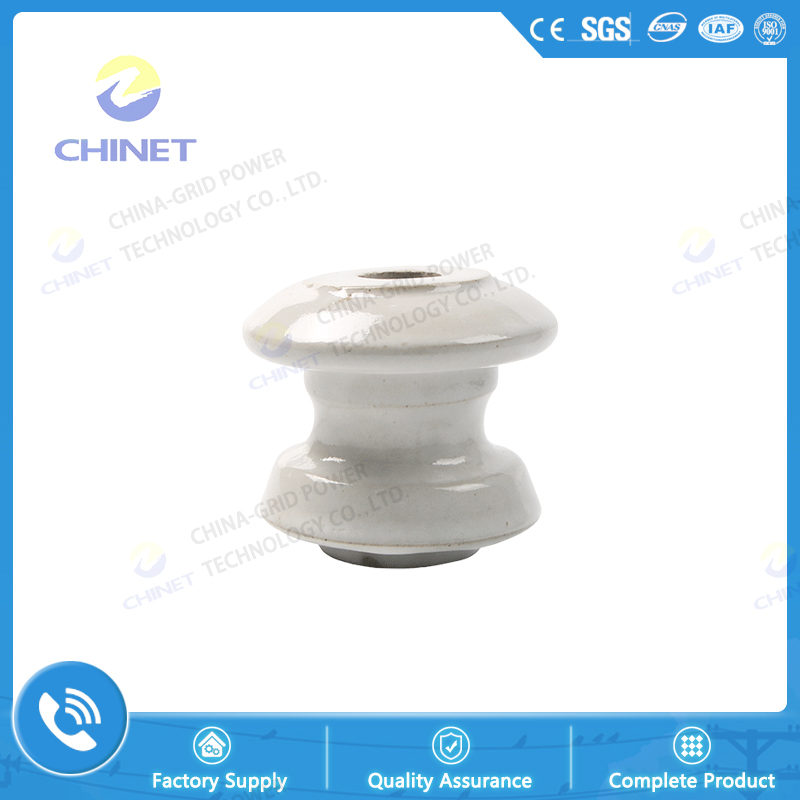

ED Type Overhead Power Line Disc Ceramic Insulator for Conductor Cross Arm Rod

Classification：Ceramic Insulator

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview

Description:

It is used for overhead power lines with DC or power frequency AC rated voltage below 1000V. It is used for insulation and fixed wire. The insulator used to support the wire can be connected to the wire and the cross-bar tower insulation, which can avoid the sun and rain. Change and corrosion of chemicals

According to its structural type, it is divided into low-voltage pin insulators, low-voltage butterfly insulators, low-voltage bobbin insulators, etc. The ambient temperature of the installation and use location is -40 ° C ~ + 40 ° C, the height does not exceed 1000 m

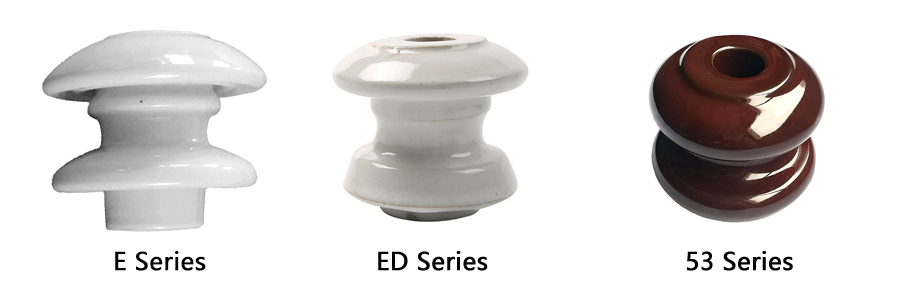

ED Parameter:

Type	Main dimensions mm							Mechanical failure ≥KN	Power frequency voltage ≥KN		Weight
Type	H	h	D	d	d1	d2	R	Mechanical failure ≥KN	Dry flashover	Wet flashover	Weight
ED-1	90	46	100	95	50	22	12	12	22	10	0.8
ED-2	75	38	80	75	42	20	10	10	18	9	0.5
ED-3	65	34	70	65	36	16	8	8	16	7	0.25
ED-4	50	26	60	55	30	16	6	5	14	6
ED - low voltage line butterfly insulator the number after "-" is the shape size ordinal number, and "1" is the largest size.

E Parameter:

Type	Rated voltage kV r.m.s	Main dimensions mm					Power frequency voltage ≥KN			Mechanical failure load ≥kV	Weight
Type	Rated voltage kV r.m.s	H	D	d1	d2	R	Dry flashover	Wet flashover	Breakdown	Mechanical failure load ≥kV	Weight
E-10	10	175	180	70	26	12	60	32	78	15	3.5
E-6	6	145	150	68	26	12	50	26	65	15	1.8
E-1	-	180	150	74	26	12	45	27	78	20	4.0
E-2	-	150	130	72	26	12	38	23	65	20	2.2

53 Parameter:

Type	Main dimensions mm							Mechanical failure ≥KN	Power frequency voltage ≥KN			Weight
Type	H	h	D	d	d1	d2	R	Mechanical failure ≥KN	Dry flashover	Wet flashover		Weight
53-1	54	27	57	45	18	22	11	907	20	8	10	0.22
53-2	76	38	79	45	18	24	18	1360	25	12	15	0.55
53-3	81	40.5	76	45	18	24	11	1814	25	12	15	0.60
53-4	76	38	105	73	18	24	16	2041	25	12	15	1.15
