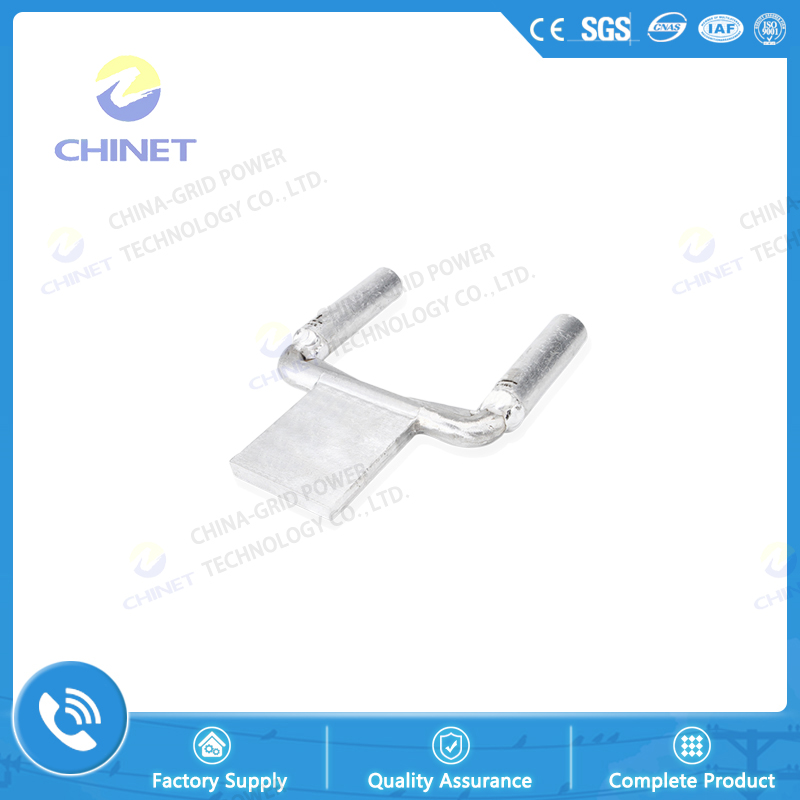

SSY SSYG-N Heat-Resistant Double Conductor Terminal Clamp

Classification:Device Fittings

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Product Description
Description:

SSY & SSYG-N Type Compression Terminal Clamps for Double Wire are applicable to connect copper conductor with aluminum terminal of electric device, qualified for good electric contact performance suitable for permanent connection.

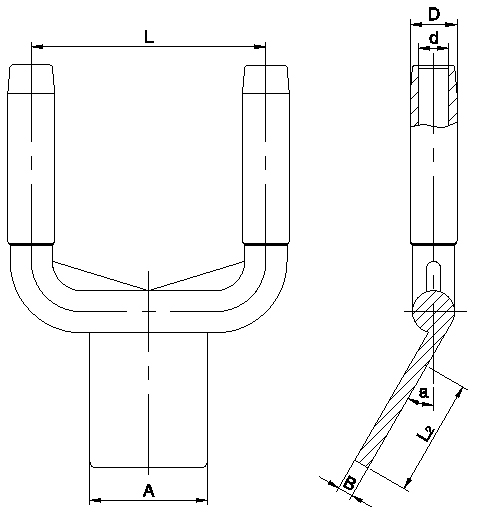

Type Suitable conductor Dimension(mm)
D L1 A L2 B L
SSY-400/20~35N-120 NRLH5860GJ-400/20~35 55 28.5 100 105 16 120
SSY-400/20~35N-200 55 28.5 100 105 16 200
SSY-400/20~35N-400 55 28.5 100 105 16 400
SSY-500/35~45N-120 NRLH5860GJ-400/35~45 65 31.5 125 130 20 120
SSY-500/35~45N-200 65 31.5 125 130 20 200
SSY-500/35~45N-400 65 31.5 125 130 20 400
SSY-900K-200(A×L2) LGKK-900 74 125 130 20 200
SSY-900K-400(A×L2) 74 125 130 20 400
SSY-1000N-200(A×L2) NRLH5860GJ-100 76 125 130 20 200
SSY-1000N-400(A×L2) 76 125 130 20 400
SSY-1440N-200(A×L2) LGKK-900 83 125 130 22 200
SSY-1440N-400(A×L2) 83 125 130 22 400
SSY-1440N-200(A×L2) NRLH5860GJ-1440 80 150 155 24 200
SSY-1440N-400(A×L2) 80 150 155 24 400
Notes:

1. The SSY type is an aluminum equipment clip; the SSYG type is a copper-aluminum equipment clip, and its size is exactly the same as the SSY type;

2. The additional letter A in the model indicates level (0 °), B indicates 30 °, C indicates 45 °, and D indicates 90 °.

3. If the sizes A and L2 change, please indicate A × L2 when ordering, such as: SSY-500 / 65NA-200 (A × L2).
