Description:

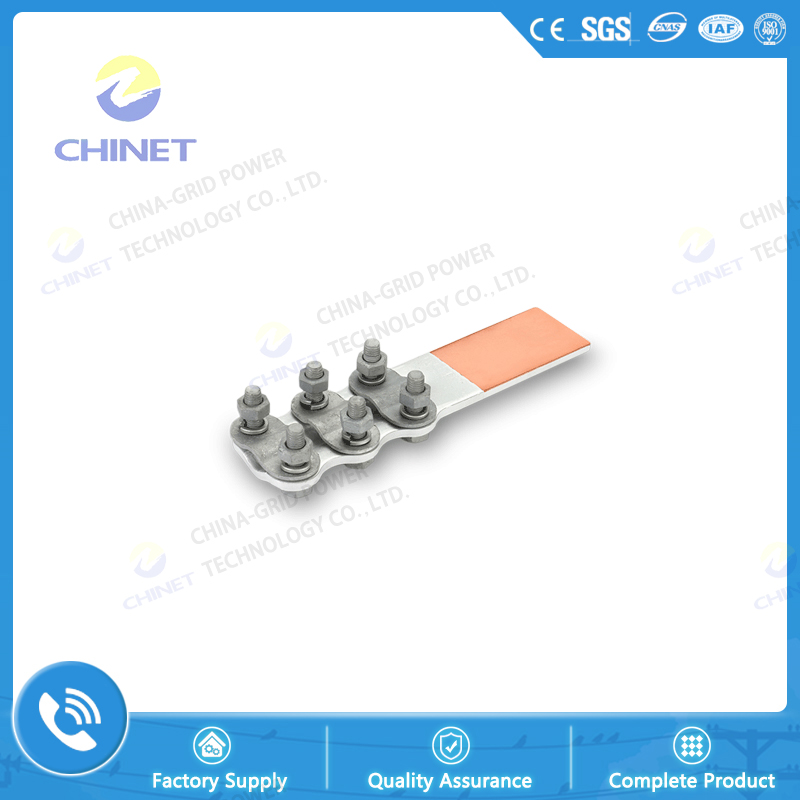

SLG-(A,B) Bolt Type Bimetallic Transitional Terminal Clamp are applicable to connect copper conductor with aluminum terminal of electric device, qualified for good electric contact performance suitable for permanent connection.
Type
|
74 standard
|
Suitable conductor(mm2)
|
Dimension(mm)
|
Remark
|
A
|
B
|
L1
|
L2
|
|
/
|
STL-1
|
35~50
|

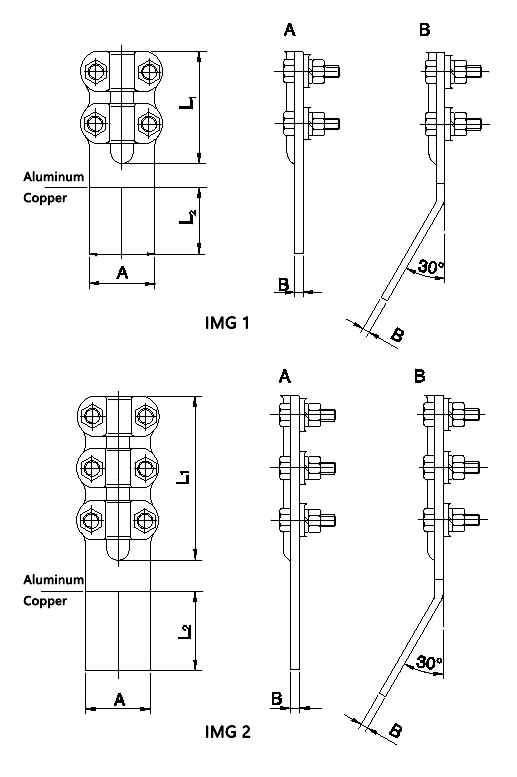

IMG 1
|
5
|
40
|
65
|
42
|
1
|
/
|
STL-2
|
70~95
|
5
|
40
|
80
|
45
|
SLG-1
|
STL-3
|
35~50
|
5
|
40
|
65
|
65
|
2
|
SLG-2
|
STL-4
|
70~95
|
5
|
40
|
80
|
80
|
SLG-3-80
|
STL-7
|
120~150
|
IMG 2
|
6
|
80
|
125
|
85
|
3
|
SLG-4-80
|
STL-8
|
185~240
|
6
|
80
|
125
|
85
|
SLG-1(98)
|
/
|
35~50
|
IMG 1
|
6.3
|
40
|
65
|
65
|
4
|
SLG-2(98)
|
/
|
70~95
|
6.3
|
40
|
80
|
80
|
SLG-3(98)
|
/
|
120~150
|
IMG 2
|
6.3
|
50
|
125
|
85
|
SLG-4(98)
|
/
|
185~240
|
6.3
|
50
|
125
|
85
|
Notes:
1.Additional letters A indicates 0°, B indicates 30°
2.Single hole is recommended for remark 1 on terminal board, double hole for remark 2 and four holes for remark 3.
3.If the size of the terminal board required by the user is different from the table, please note otherwise.
