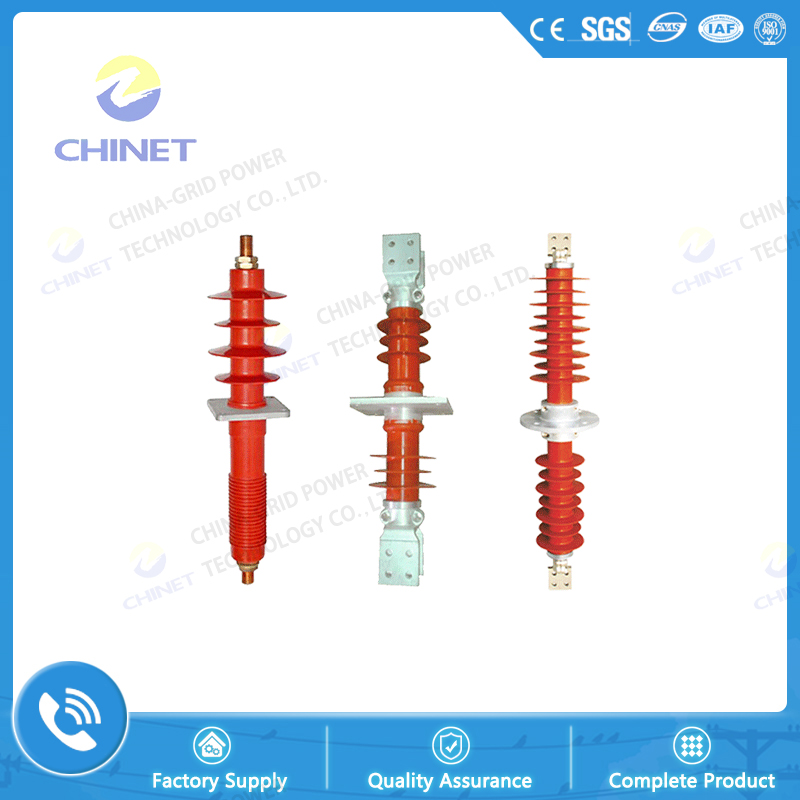

The composite dry wall bushing is insulated with new insulation material, and the outer insulation (silicone rubber shed) is made of high temperature vulcanized silicone rubber with good stain resistance.
In line with the development trend of oil-free and miniaturization in the power sector, it is a new generation of high-voltage power transmission and transformation products that meet the transformation of urban and rural power grids.
| Type |
Rated voltage (kV) |
Rated current (A) |
Allow bending load (N) |
Bending failure load (N) |
Lightning impulse withstand voltage peak (kV) |
Frequency withstand voltage (kV) |
Dielectric loss tangent (%) |
Partial discharge maximum (PC) 1.05Ur√3 |

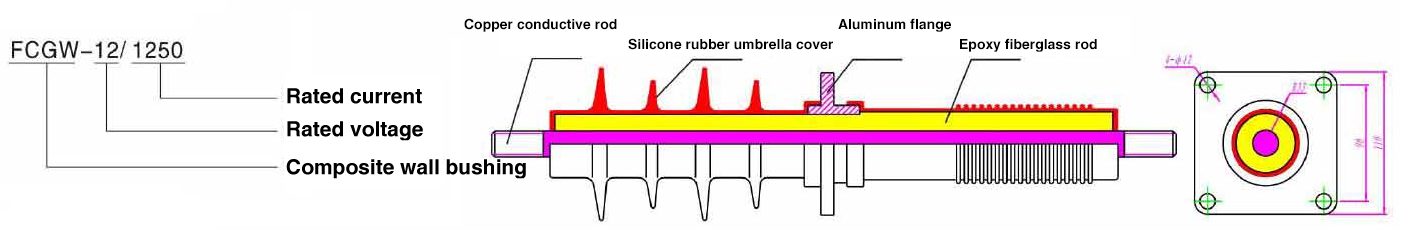

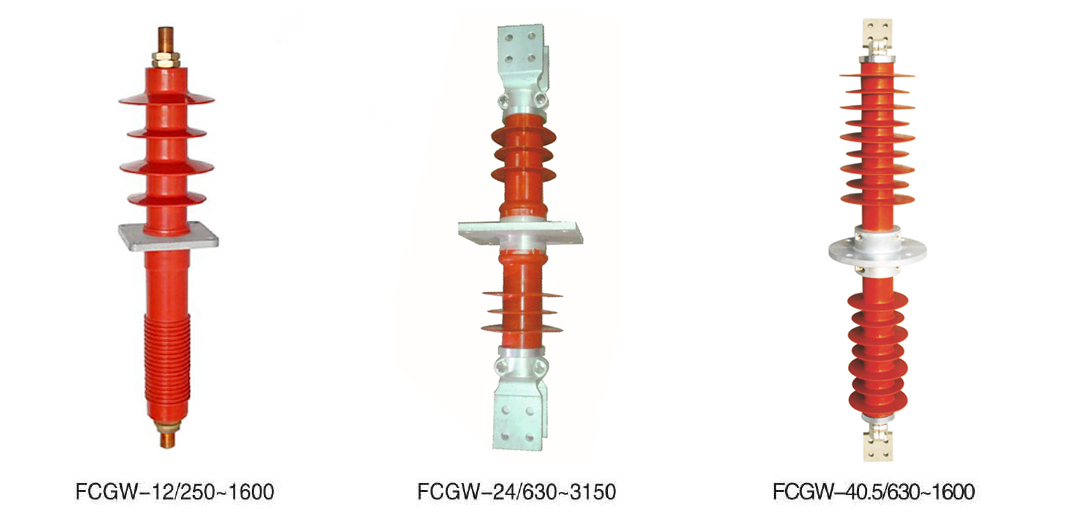

| FCGW-12/250～1600 | 12 | 250～1600 | 625 | 1250 | 75 | 30 | - | - |
| FCGW-12/2000～3150 | 12 | 200～3150 | 625 | 1250 | 75 | 30 | - | - |
| FCGW-24/630～3150 | 24 | 630～3150 | 625 | 1250 | 150 | 60 | - | - |
| FCGW-40.5/630～3150 | 40.5 | 630～3150 | 625 | 1250 | 200 | 80 | - | - |
| FCGW-72.5/630～1600 | 72.5 | 630～1600 | 625 | 1250 | 325 | 147 | ≯0.7 | ≯10 |
| FCGW-126/630～1600 | 126 | 630～1600 | 625 | 1250 | 550 | 230 | 0.7 | ≯10 |
| Type |
Total length (mm) |
Outdoor insulation distance (mm) |
Outdoor creepage distance (mm) |
Indoor insulation distance (mm) |
Indoor creepage distance (mm) |
Mounting hole center distance (mm) |
Terminal hole distance (mm) |
Number of terminal holes |
| FCGW-12/250～1600 | 535 | 200 | 380 | 190 | 200 | II90 | - | - |
| FCGW-12/2000～3150 | 800 | 200 | 460 | 170 | 370 | φ205 | 50×50 | 4-φ18 |
| FCGW-24/630～3150 | 1050 | 300 | 820 | 280 | 600 | φ205 | 50×50 | 4-φ18 |
| FCGW-40.5/630～3150 | 1340 | 450 | 1280 | 370 | 820 | φ205 | 50×50 | 4-φ18 |
| FCGW-72.5/630～1600 | 2150 | 700 | 2250 | 680 | 1900 | φ350 | 50×50 | 4-φ18 |
| FCGW-126/630～1600 | 3100 | 1150 | 3150 | 1100 | 2520 | φ350 | 50×50 | 4-φ18 |
|
Rated current (A) |
|||||||||||
| 100 | 250 | 315 | 400 | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 |
