Description:

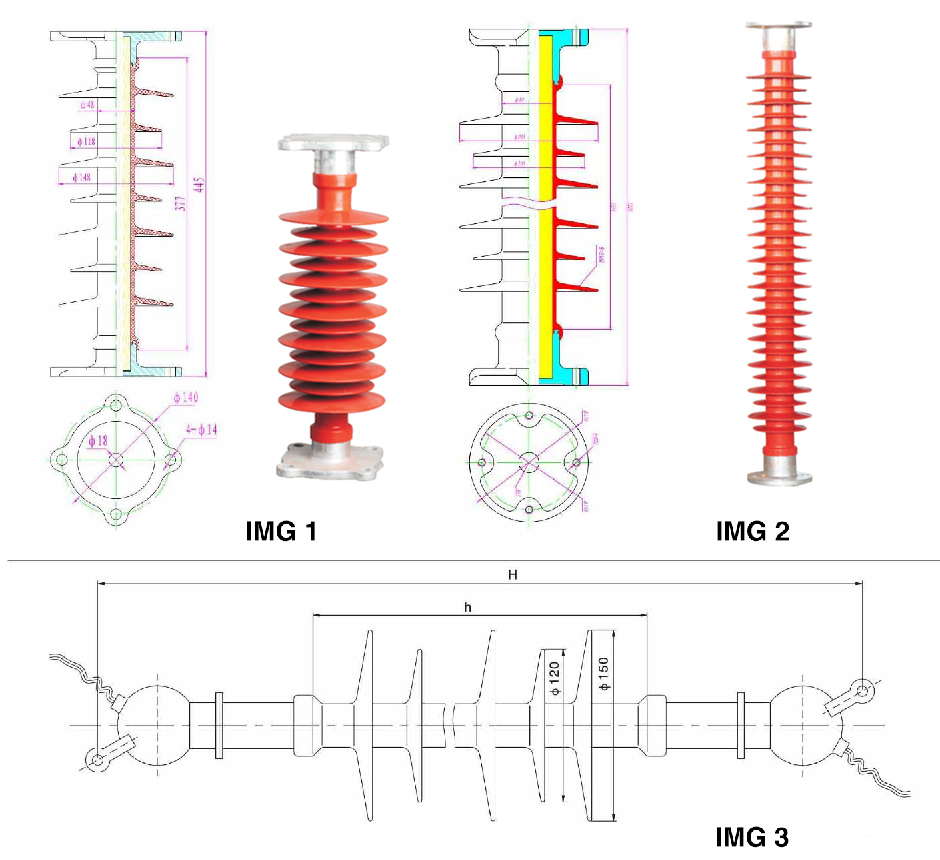

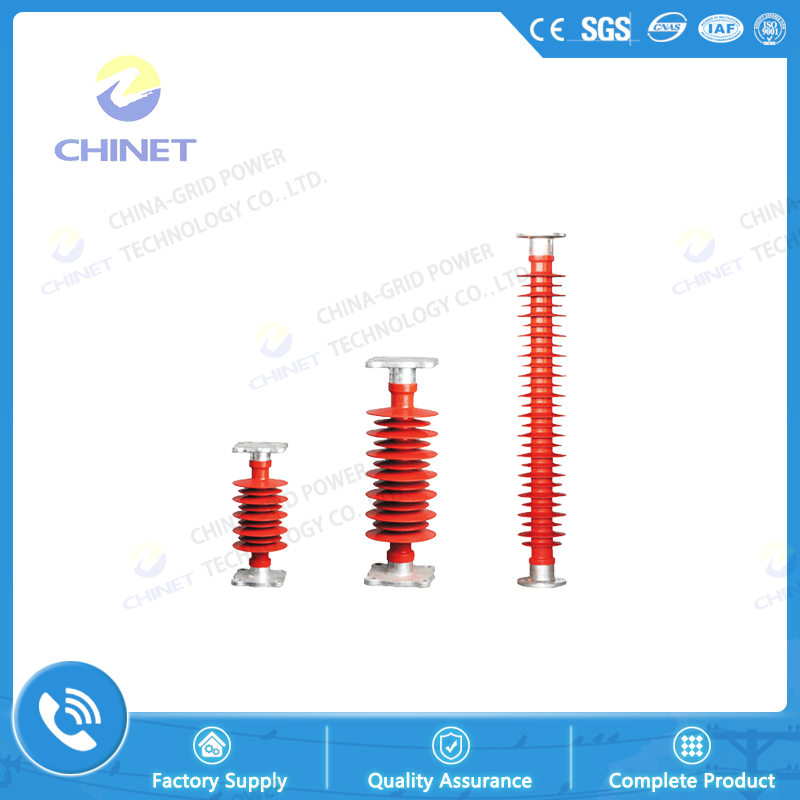

Composite optical fiber insulator is a component of photoelectric transformer, which has high strength, light weight, strong shock resistance, good pollution resistance and does not need to be cleaned manually. It is an ideal substitute for porcelain bushing, and can also be used for optical fiber of optical fiber composite ground wire to lead the high-voltage area.
Technical:
Type
|
Rated voltage kV
|
Rated bending load kV
|
Structure height (mm)
|
Insulation distance (mm)
|
Min nominal creepage distance (mm)
|
Lightning full wave impulse withstand voltage kV
|
Power frequency wet withstand voltage 1minkV
|
Weight (kg)
|
|
FZGQ-35/5
|
35
|
5
|
445
|
353
|
930
|
185
|
80
|
|
|
FZGQ-110/8
|
110
|
8
|
1270
|
1050
|
2900
|
550
|
230
|
|
|
FXGQ-110/70
|
110
|
70
|
1700
|
1000
|
3600
|
550
|
230
|
|
|
FXGQ-220/70
|
220
|
70
|
2700
|
2000
|
6600
|
1000
|
395
|
|
|
Note: 1. When the rated voltage is 220KV, the pillar type composite optical fiber insulator is used in combination with two FZGQ-110/8
|
