Description:

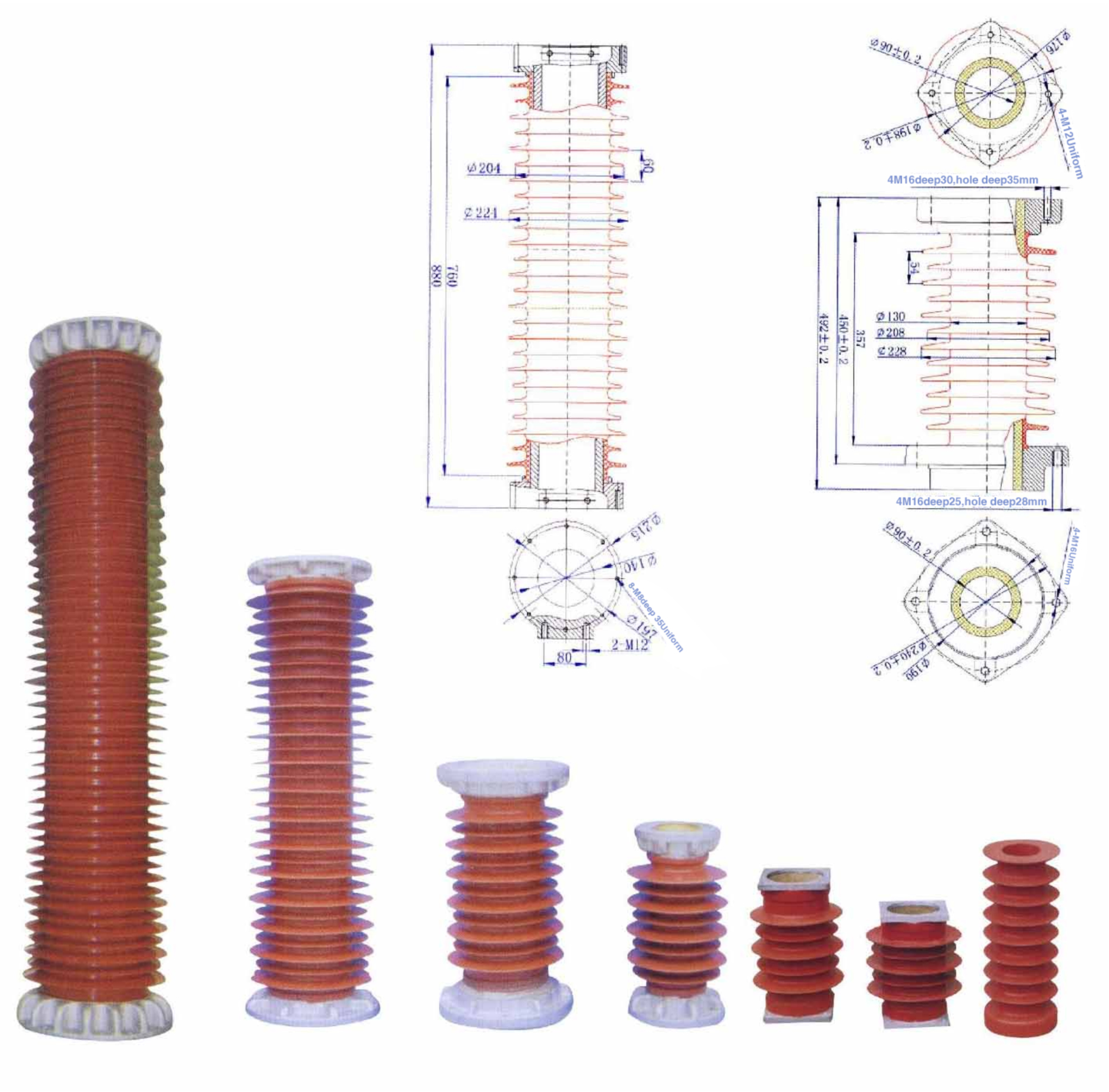

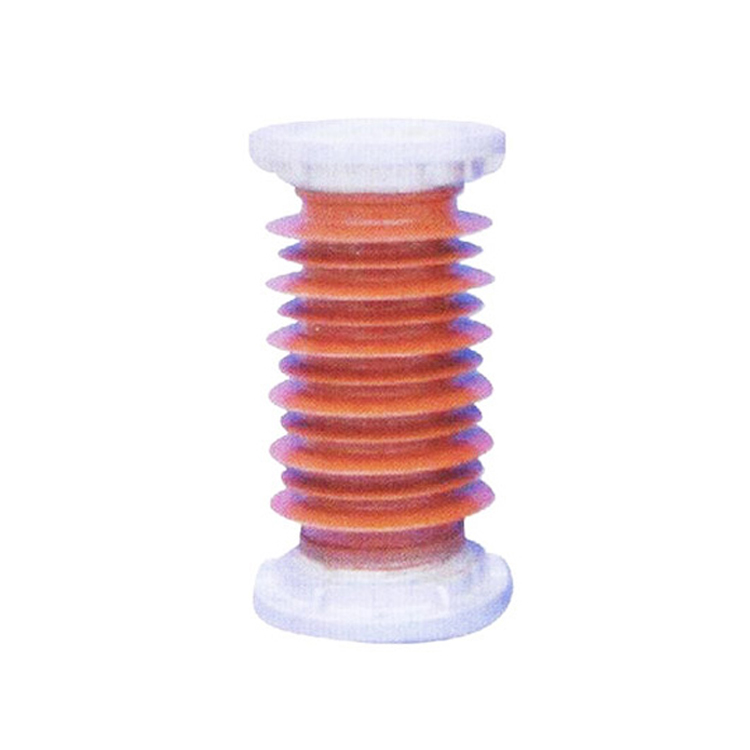

Composite bushings are commonly used in high-voltage electrical equipment such as capacitors and vacuum circuit breakers. They are light in weight, easy to install and transport, high in strength, strong in shock and impact resistance, good in stain resistance, and do not require manual cleaning. They are an ideal replacement for porcelain casings. .
Type
|
Rated voltage
(kV)
|
Rated bending load
kN
|
Structure height
(mm)
|
Insulation distance
(mm)
|
Min nominal creepage distance
(mm)
|
Lightning full wave impulse withstand voltage
(kV)
|
Frequency withstand voltage
(kV)
|
Weight
(kg)
|
|
FTG-180/4
|
180
|
4
|
1480
|
1370
|
3700
|
750
|
300
|
16
|
|
FTG-25/4-C
|
25
|
4
|
450
|
357
|
1298
|
210
|
100
|
7.2
|
|
FTG-25/4-S
|
35
|
5
|
350
|
260
|
548
|
170
|
80
|
5.8
|
|
