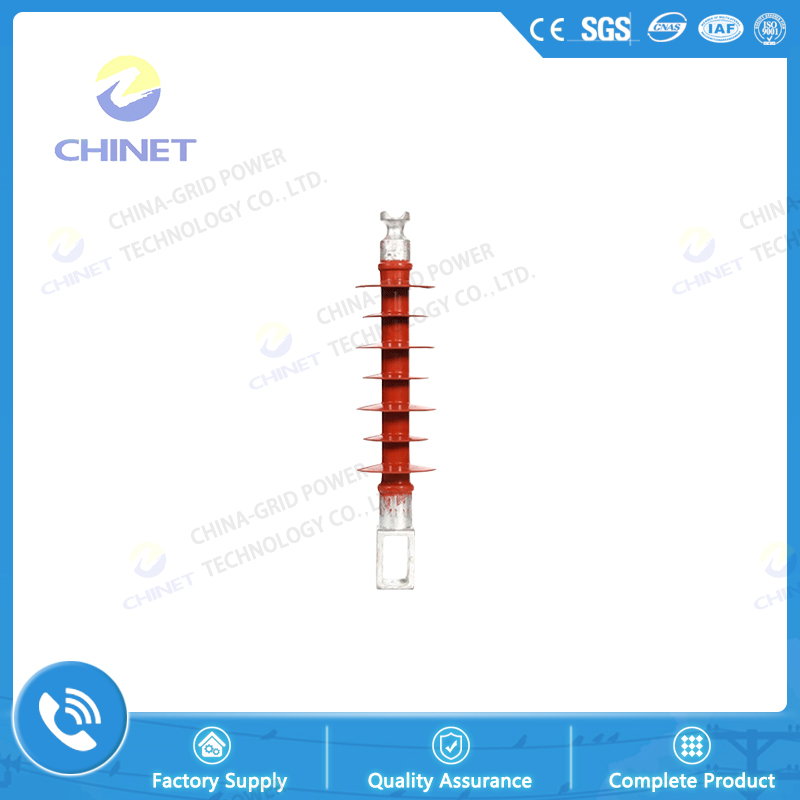

FS Type High Voltage Electrical Good Composite Cross-Arm Insulator

Classification:Insulator Fitting

Inside Road & Administration Industry & Trading Garden,Houshan Industry Area,Fuzhou City,Fujian Province

0591-22806687 0591-22806697

0591-22806667

bs@china-grid.com.cn

Overview
Description:

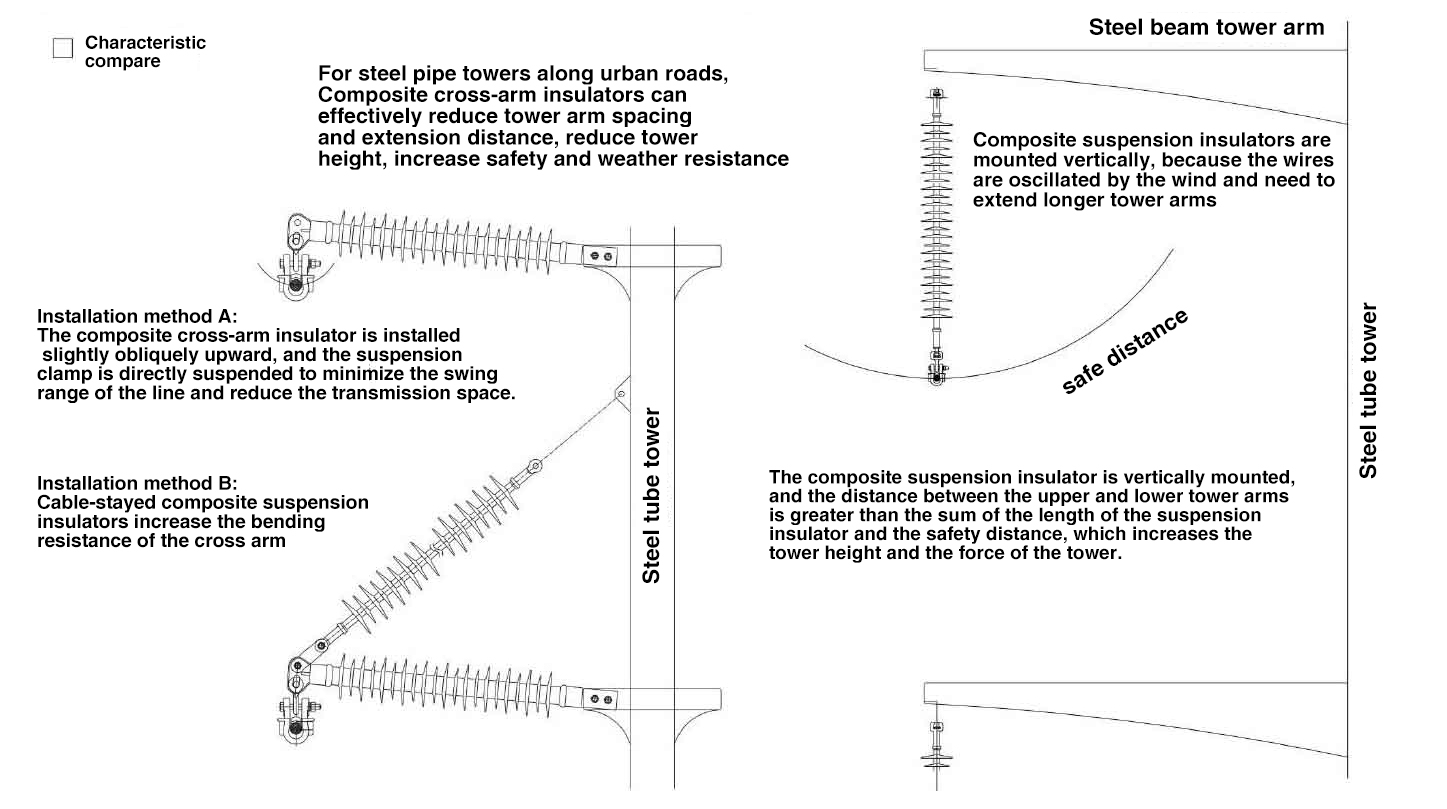

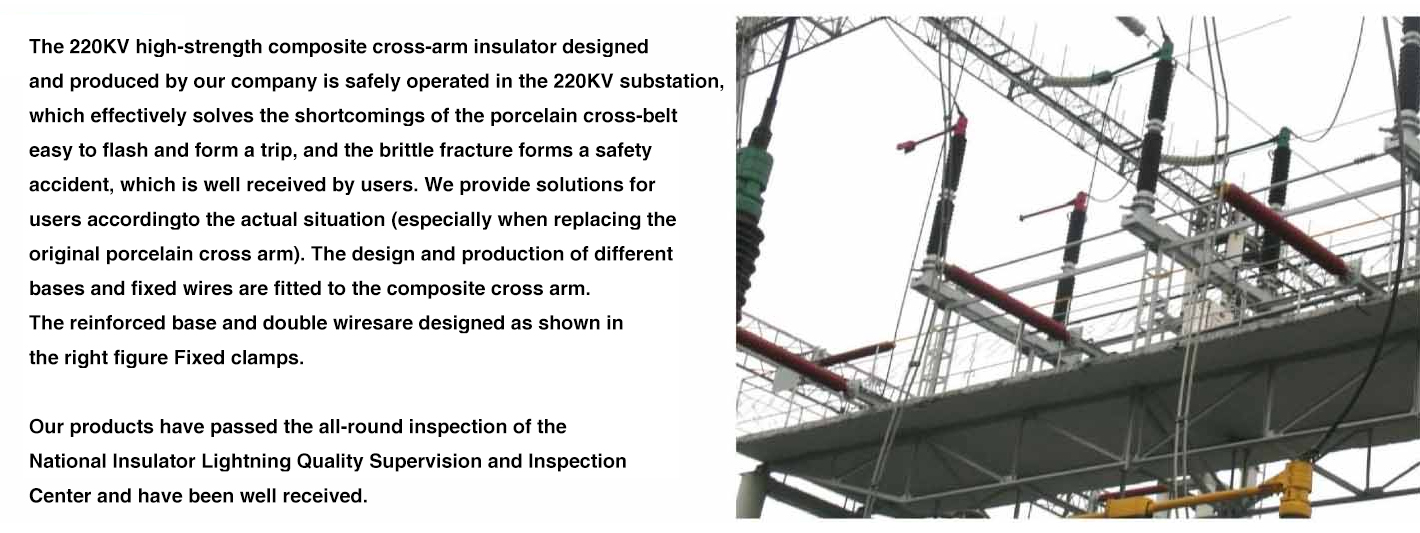

The composite cross-arm insulator can effectively use the narrow corridor to open and transmit electricity, which is suitable for the technical transformation of the city network, which can reduce the height of the tower and save a lot of manpower, material resources and financial resources.

Because of its high bending strength, it can prevent the cascade breakage accident that is easy to occur in porcelain cross-arm. It is a product that cannot be replaced by porcelain cross-arm. It is small in size, light in weight, strong in shock resistance and impact resistance, and requires no manual cleaning for safe operation. provide assurance.

Type Rated voltage
(kV)
Rated bending load
(KN)
Structural height
(mm)
Min arc distance
(mm)
Min nominal creepage distance
(mm)
Lightning full wave impulse withstand voltage
≥ (kV)
Frequency withstand voltage
kV
Installation size Mounting structure height Installation method Reference figure No.
Mounting holes Stable hole Hole center distance

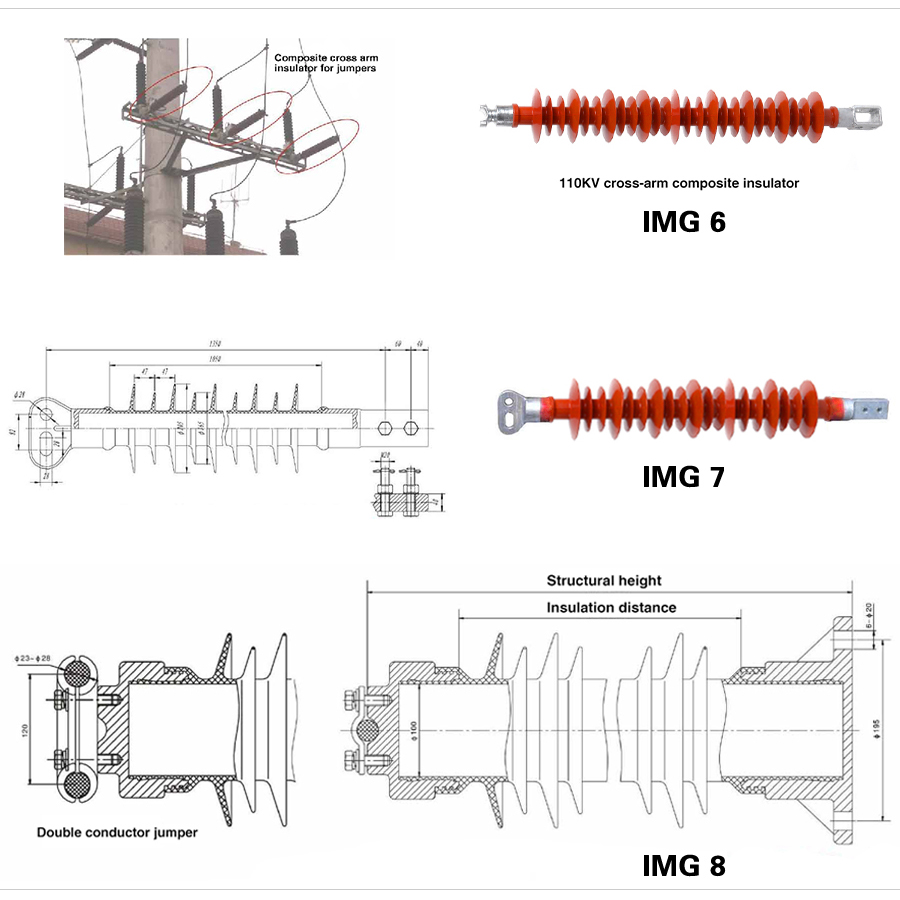

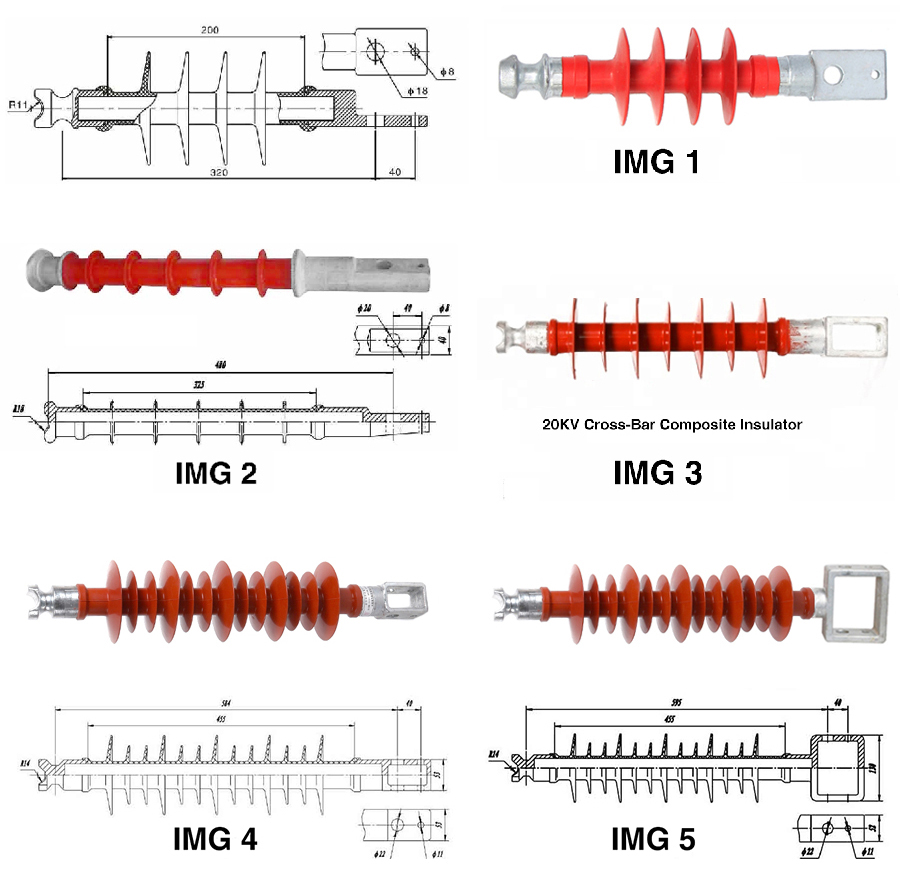

FS-10/2.5B 10 2.5 350 200 530 95 60 φ18 φ8 40 11 Plate IMG 1
FS-10/5B 10 5 480 320 440 150 60 φ20 φ8 40 30 Plate IMG 2
FS-10/5 10 5 480 320 440 150 60 φ20 φ8 40 45 Frame
FS-12/5 12 5 425 285 470 150 60 φ18 φ10 40 48 Frame
FS-20/5 20 5 475 328 860 170 70 φ22 φ11 40 70 Frame
FS-20/8 20 8 475 328 860 170 70 φ22 φ11 40 70 Frame IMG 3
FS-35/5X 35 5 584 455 1280 230 95 φ22 φ11 40 53 Small frame IMG 4
FS-35/5D 35 5 595 455 1280 230 95 φ22 φ11 40 130 Big frame IMG 5
FS-35/10X 35 10 605 440 1380 230 95 φ22 φ11 40 68 Small frame
FS-66/5 66 5 830 664 2110 410 185 φ22 φ11 40 68 frame
FS-66/5 66 5 845 664 2110 410 185 φ22 φ11 40 30 Plate
FS-66/5 66 5 815 664 2110 410 185 φ22 φ11 40 140 Small frame
FS-110/8 110 8 1220 1050 3150 550 230 φ22 φ25 52 90 Frame
FS-110/8B 110 8 1270 1050 3150 550 230 φ22 φ22 52 40 Plate
FS-110/10 110 10 1270 1050 3150 550 230 φ22 φ25 52 100 Frame
XF(FS)-110/6 110 6 1160 1000 3200 550 230 φ22 φ22 40 68 Frame
XF(FS)-110/8 B 110 8 1270 1050 3150 550 230 φ22 φ22 52 40 Plate IMG 6
FS-220/6B 220 6 2250 2000 6400 1050 395 φ22 φ22 52 40 Plate
FS-220/8 220 8 2150 2000 6400 1050 395 20 195 / Round IMG 8
Ordering Information: 1. If the customer needs different end fittings and installation dimensions, please specify otherwise.
